Introduction

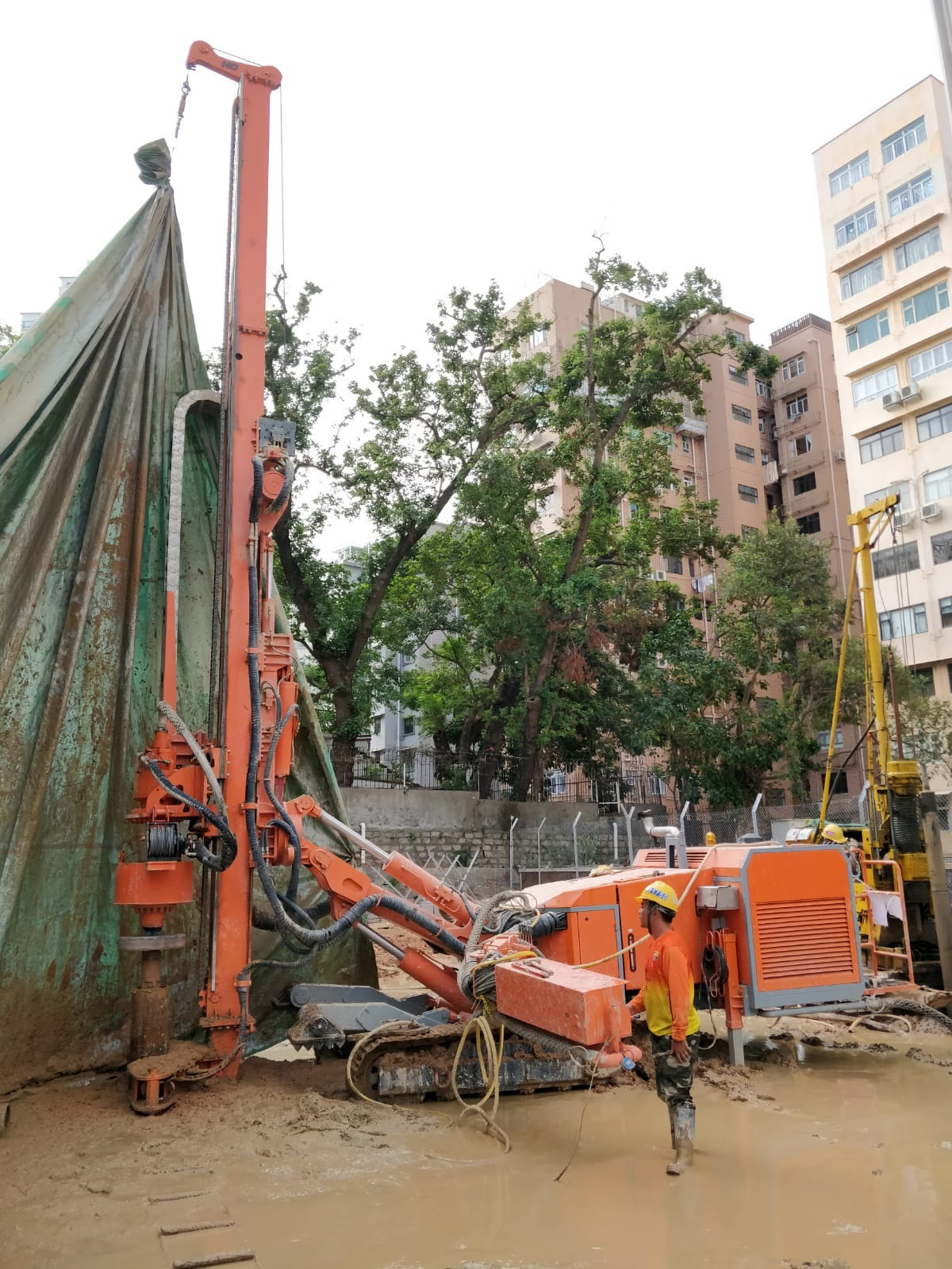

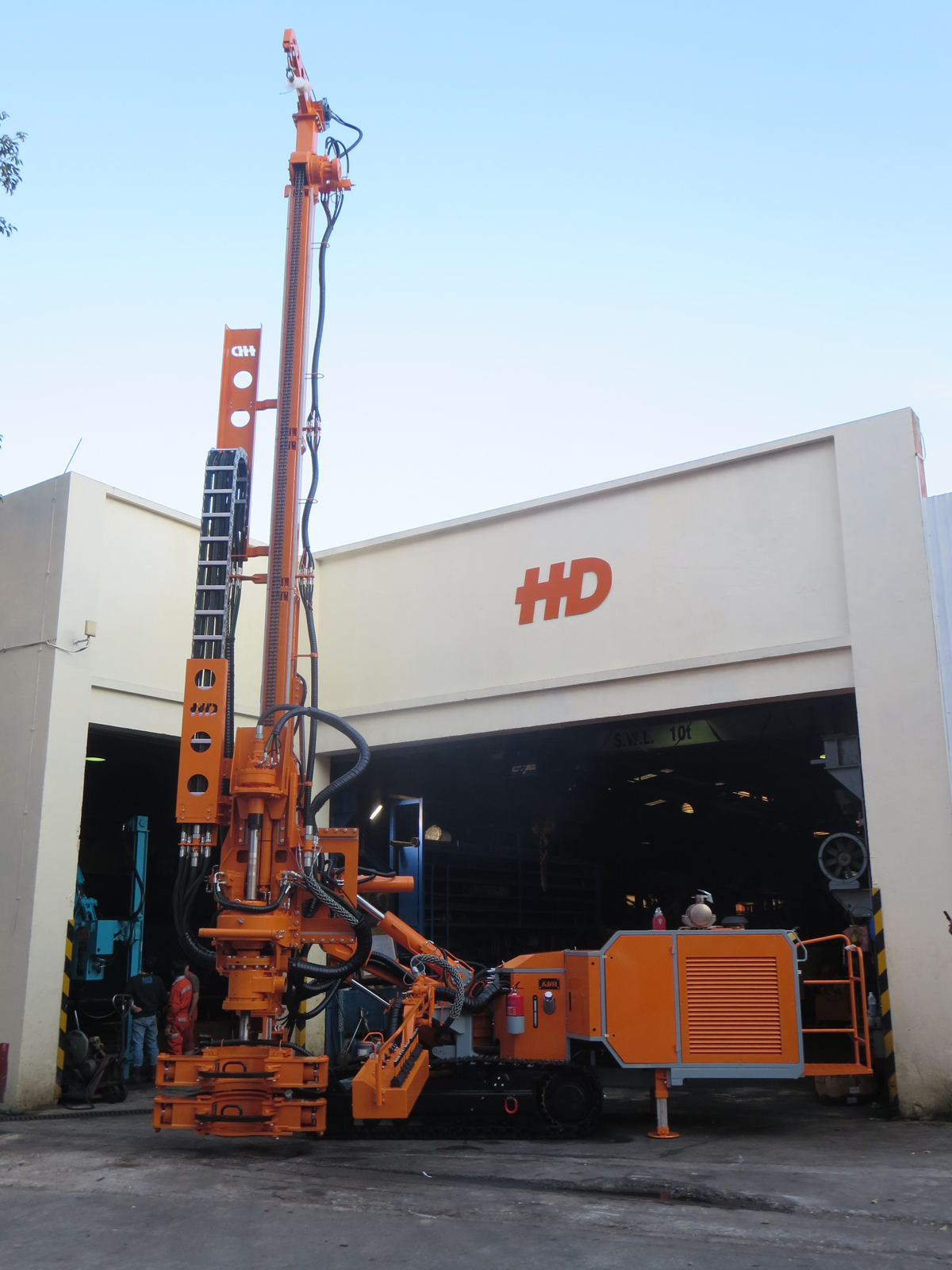

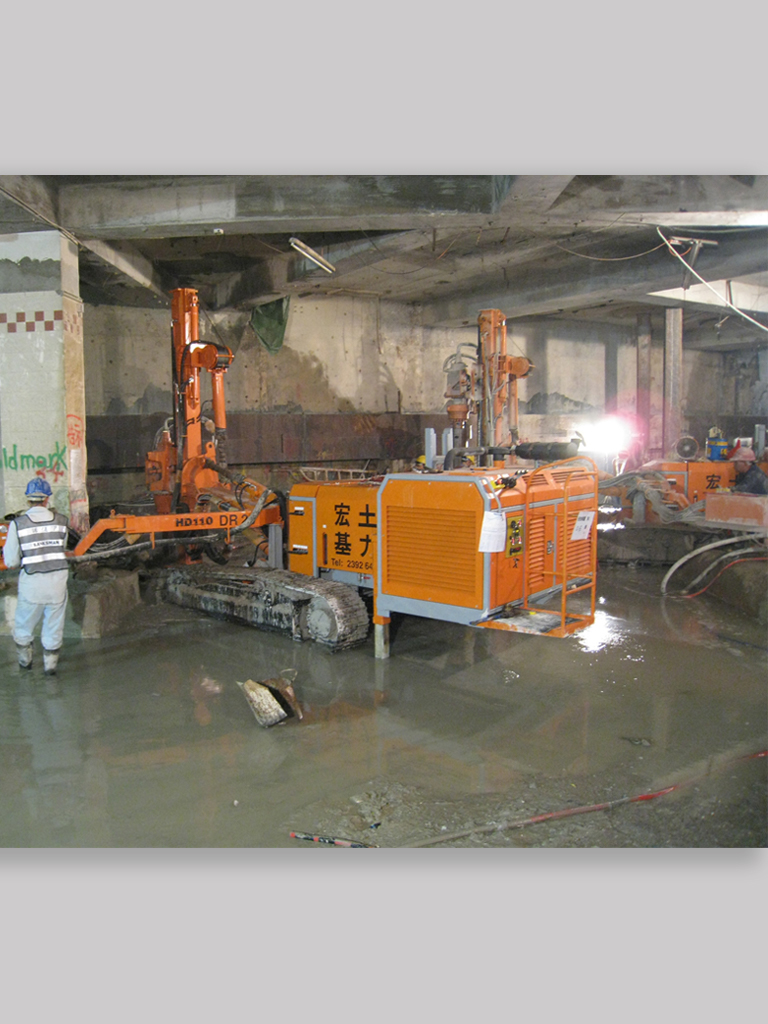

The HD110-3 is designed with swing boom. The feature allow it to work in limited access job site. The high-torque rotator (up to 2340kgm or 16850 ft.lb torque) make it suitable for micropile and DTH drilling application.
With the optional feature, "side swing device", the rig will have some more movements for better drilling positions, and the "mast extension" enables the rig to drill with 6m, 20ft., long drill rod, increasing the productivity.
- Weight = 12.5 tons (27,560 lbs)
- Power = 106 kw (142 HP)
- Rotator max. torque = 24,000 Nm (17,352 ft.lb)
(Equipped with HR2400 rotator)
- Feed max. force = 8 tons (17,600 lb)
- Pullback max. force = 8 tons (17,600 lb)
Applications :
* Drifter Drilling
* DTH Drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
* Coring
More Detail :
The HD110-3 is designed with swing boom. The feature allow it to work in limited access job site. The high-torque rotator (up to 2340kgm or 16850 ft.lb torque) make it suitable for micropile and DTH drilling application.
With the optional feature, "side swing device", the rig will have some more movements for better drilling positions, and the "mast extension" enables the rig to drill with 6m, 20ft., long drill rod, increasing the productivity.
- Weight = 12.5 tons (27,560 lbs)
- Power = 106 kw (142 HP)
- Rotator max. torque = 24,000 Nm (17,352 ft.lb)
(Equipped with HR2400 rotator)
- Feed max. force = 8 tons (17,600 lb)
- Pullback max. force = 8 tons (17,600 lb)
Applications :
* Drifter Drilling
* DTH Drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
* Coring
