Introduction

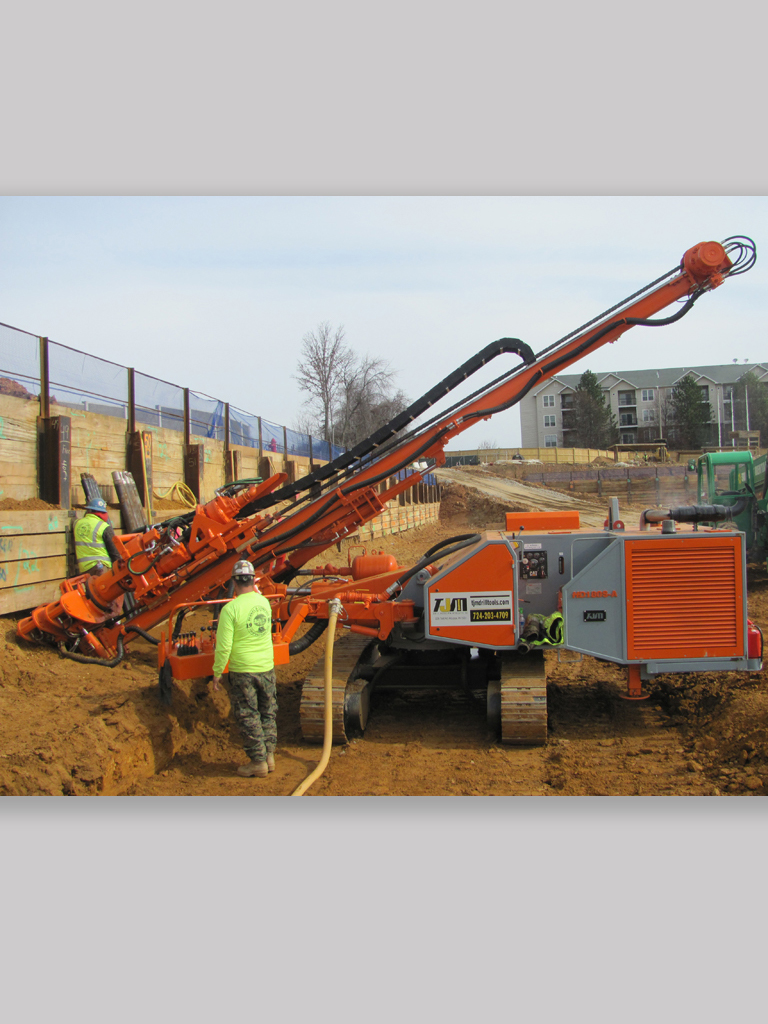

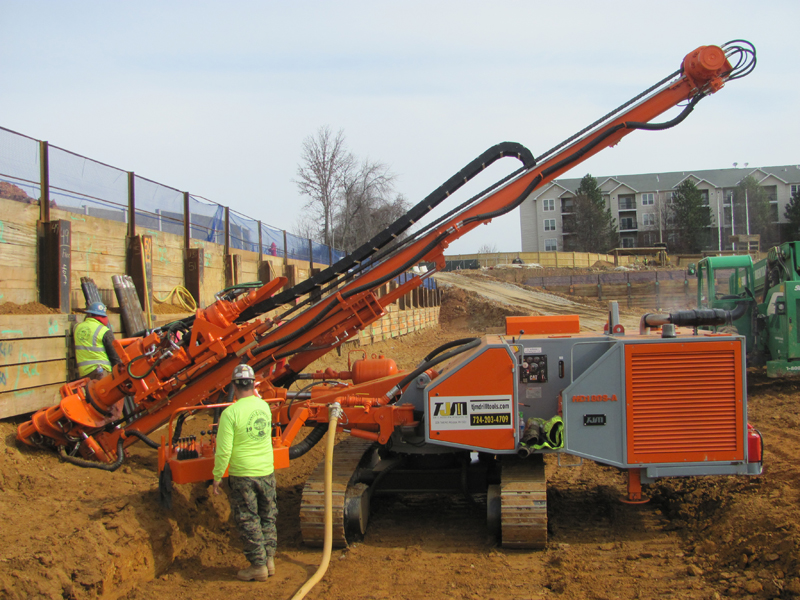

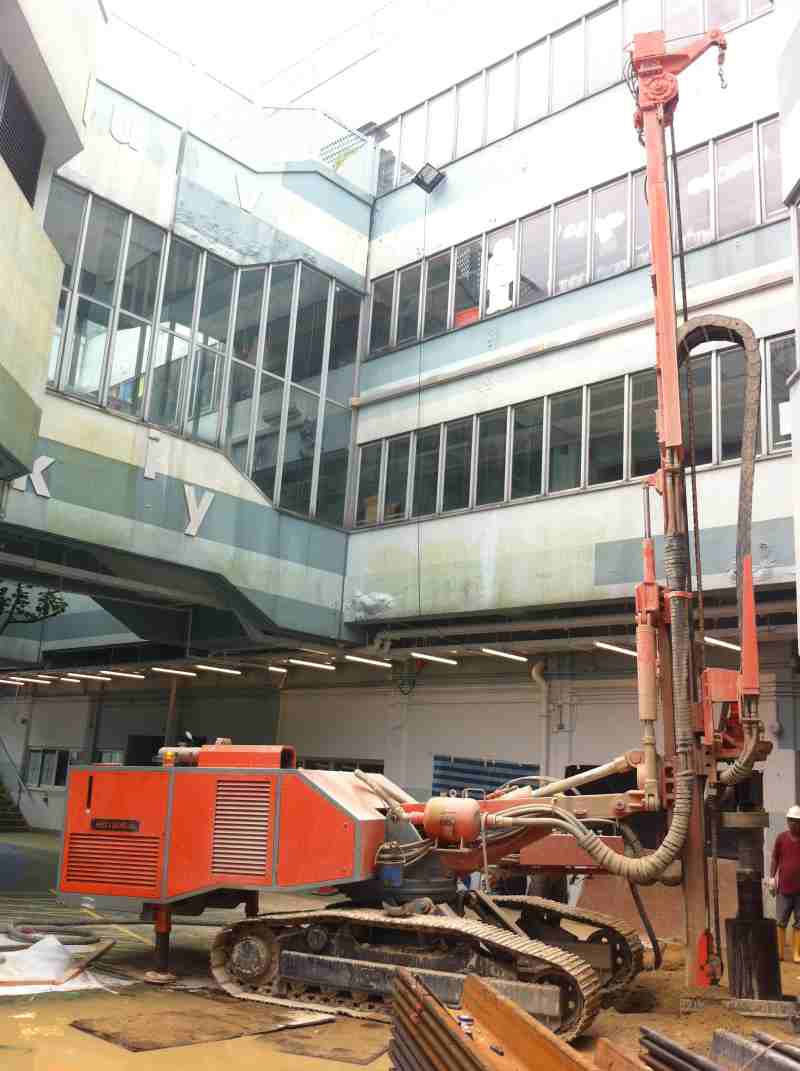

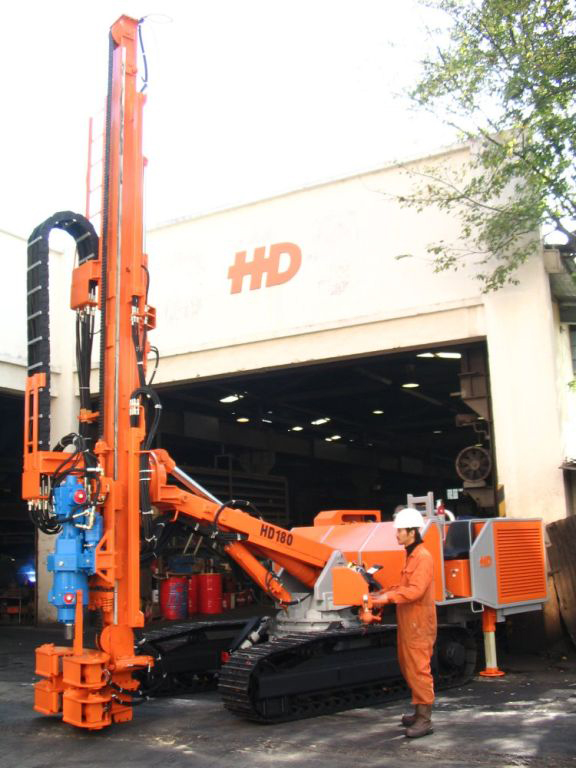

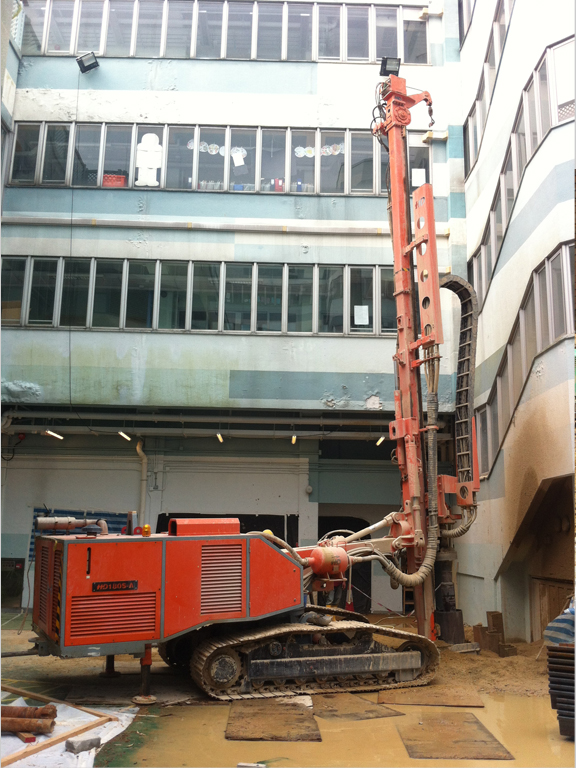

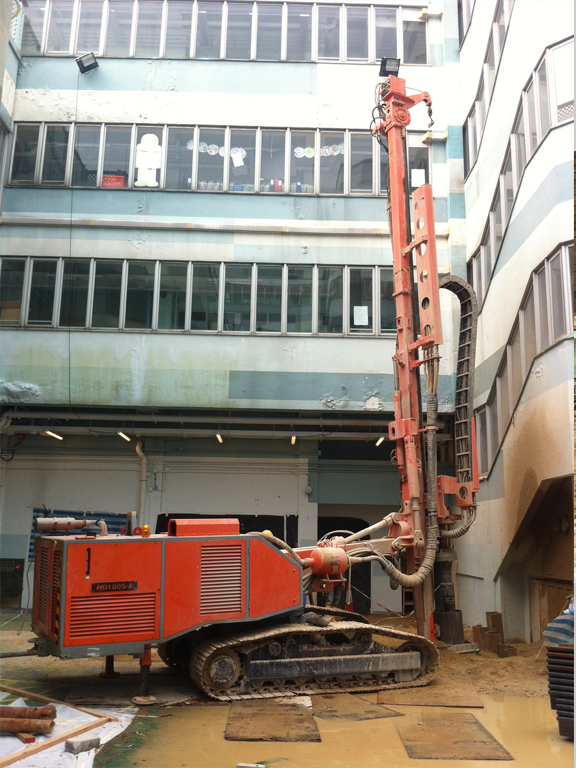

The HD180S-A is an up-graded version of our previous HD120, with higher power engine, also excellent articulation, and ideal machine for high-torque hydraulic drifter of over 2,400 kgm (17,300 ft lb) torque. It can also be mounted with a super high-torque rotator (up to 24,000 kgm or 17,300 ft. lb. torque).. This machine is ideal for anchor drilling using drifters and large diameter piles using high-torque rotators. The optional item, mast extension, enables the rig to drill with 6m long drill rod.
- Weight = 13.5 tons (29,700 lbs)
- Power = 129 kw (173 HP)
- Rotator max. torque = 24,000 Nm (17,352 ft.lb)
(Equipped with HR2400 rotator)
- Feed max. force = 8 tons (17,600 lb)
- Pullback max. force = 8 tons (17,600 lb)
Applications :
* Double Head Drilling
* Drifter Drilling
* DTH Drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
* Coring
More Detail :
The HD180S-A is an up-graded version of our previous HD120, with higher power engine, also excellent articulation, and ideal machine for high-torque hydraulic drifter of over 2,400 kgm (17,300 ft lb) torque. It can also be mounted with a super high-torque rotator (up to 24,000 kgm or 17,300 ft. lb. torque).. This machine is ideal for anchor drilling using drifters and large diameter piles using high-torque rotators. The optional item, mast extension, enables the rig to drill with 6m long drill rod.
- Weight = 13.5 tons (29,700 lbs)
- Power = 129 kw (173 HP)
- Rotator max. torque = 24,000 Nm (17,352 ft.lb)
(Equipped with HR2400 rotator)
- Feed max. force = 8 tons (17,600 lb)
- Pullback max. force = 8 tons (17,600 lb)
Applications :
* Double Head Drilling
* Drifter Drilling
* DTH Drilling
* Augering
* Rotary Drilling (Tricone Bits and Drag Bits)
* Coring
